Differences Between Hydraulic Cylinders and Air Cylinders

Hydraulic cylinders and air cylinders are both types of actuators widely used in industrial automation and machinery to create linear motion. Although they serve similar purposes, they differ significantly in working principles, construction, performance, and typical applications. Understanding these differences is crucial for selecting the right cylinder for a specific use case.

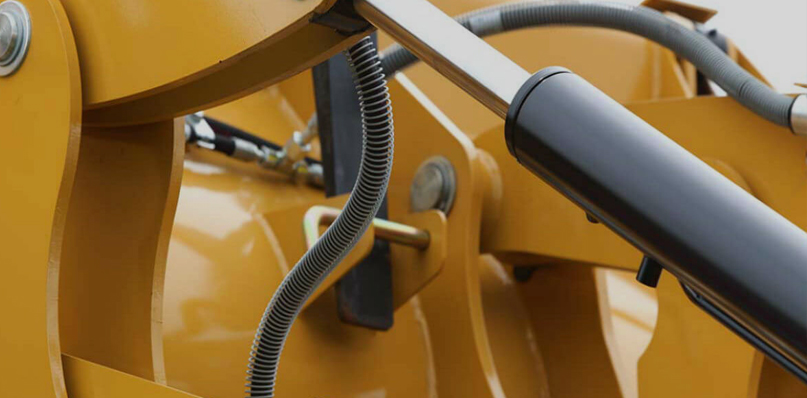

What Is a Hydraulic Cylinder?
A hydraulic cylinder is a mechanical actuator that converts hydraulic energy into linear mechanical force and motion. It uses pressurized hydraulic fluid (usually oil) to push a piston inside a cylindrical barrel. This force moves the piston rod outward or retracts it, performing work such as lifting, pushing, or pulling.

Key Features of Hydraulic Cylinders:
Power and Force: Hydraulic cylinders can generate very high forces and torques because hydraulic fluid is incompressible and can transmit significant pressure (commonly up to several thousand PSI).
Construction: Typically made of robust materials such as steel or stainless steel, designed to withstand high pressure.
Sealing and Components: Equipped with precision seals and bearings to handle the high pressure and prevent fluid leakage.
Speed Control: Hydraulic systems allow precise control over speed and force by regulating fluid flow and pressure.
Applications: Used in heavy machinery such as construction equipment (excavators, loaders), industrial presses, injection molding machines, and aircraft landing gear.

What Is an Air Cylinder?
An air cylinder, also known as a pneumatic cylinder, uses compressed air to create linear motion. The cylinder contains a piston inside a tube, and the movement of the piston is driven by the pressure difference between the two sides of the piston created by compressed air.

Key Features of Air Cylinders:
Power and Force: Air cylinders generally produce less force compared to hydraulic cylinders due to air’s compressibility and lower pressure limits (usually up to 150 PSI).
Construction: Made from lightweight materials such as aluminum or stainless steel. The design is simpler and less robust than hydraulic cylinders.
Speed and Responsiveness: Air cylinders can move quickly and are ideal for fast, repetitive motions.
Maintenance: They tend to be easier to maintain with fewer sealing issues because air leaks are less critical than fluid leaks.
Applications: Commonly used in automation, packaging, material handling, robotics, and light-duty machinery.

Detailed Comparison

Why Choose Hydraulic Cylinders?
Hydraulic cylinders excel in applications demanding high force, smooth controlled movement, and the ability to work under heavy load conditions. Their design is robust, allowing operation in harsh environments and with heavy machinery. When precise control of force and speed is required under high pressure, hydraulic cylinders are the preferred choice.

Why Choose Air Cylinders?
Air cylinders are favored for fast, repetitive motions where moderate force is sufficient. Their lightweight construction and simpler pneumatic systems make them easier and cheaper to install and maintain. They are widely used in manufacturing automation, where speed and reliability with minimal maintenance are critical.

Hydraulic and air cylinders each have distinct advantages depending on the needs of an application. Hydraulic cylinders provide high force and precise control but come with complexity and cost. Air cylinders offer speed, simplicity, and cost-effectiveness but are limited in force and control precision. Selecting between them requires considering load requirements, speed, control, cost, and environmental factors.
