How do the load capacities and stroke lengths of hydraulic cylinders impact the lifting and extension capabilities of a side-mounted crane?

The load capacities and stroke lengths of hydraulic cylinders are critical factors that significantly impact the lifting and extension capabilities of a side-mounted crane.

1. Load Capacity

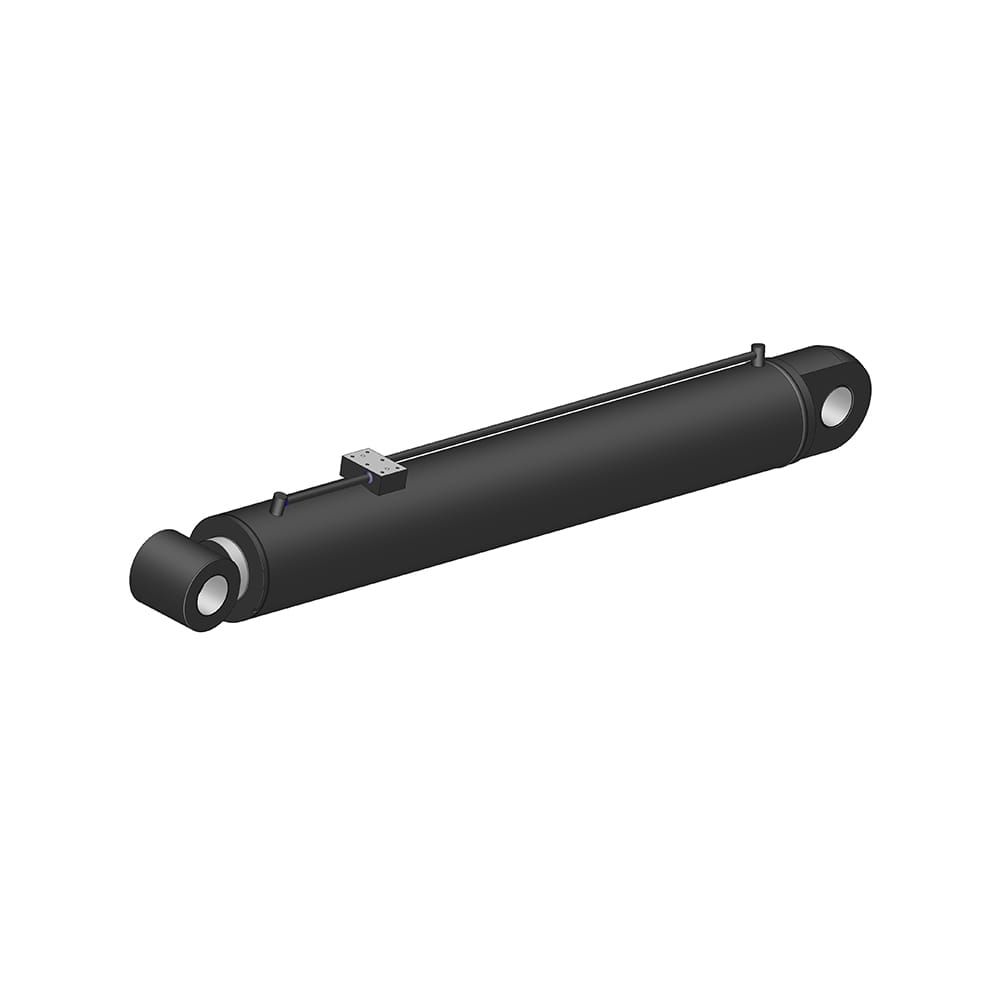

The load capacity of a hydraulic cylinder for side-mounted crane refers to the maximum weight the cylinder can safely lift or move without failure. In the context of a side-mounted crane, this directly influences the crane's ability to handle different weights and types of loads.

• Determining Lifting Power: The load capacity determines the amount of force the hydraulic cylinder can exert. A higher load capacity allows the crane to lift heavier loads. For side-mounted cranes, the cylinder must be sized according to the maximum load it is expected to handle. If the cylinder’s load capacity is insufficient, it can lead to failure of the hydraulic system or structural damage to the crane.

• Safety and Structural Integrity: Proper matching of load capacity ensures that the crane can operate safely within its design limits. If the crane attempts to lift a load that exceeds the cylinder's capacity, it risks mechanical failure or accidents, which could compromise the safety of both the crane operator and the surrounding environment.

• Dynamic Load Handling: In many crane operations, the load isn't static, and the crane must handle dynamic loads that shift or move. Hydraulic cylinders with higher load capacities are typically designed to handle these variable stresses more effectively, ensuring that the crane maintains stability and control even when the load is in motion.

2. Stroke Length

The stroke length of a hydraulic cylinder refers to the distance the piston can travel within the cylinder. This distance determines the extension and retraction capabilities of the crane’s lifting arm, which is essential for its overall reach and flexibility.

• Extension of the Crane Arm: The stroke length directly affects the crane's ability to extend its lifting arm to reach objects at varying distances. A longer stroke length allows the crane to lift objects from farther distances or greater heights, offering more flexibility in operation. Conversely, a shorter stroke length limits the crane's reach, making it suitable for handling objects within a smaller range.

• Vertical and Horizontal Reach: In side-mounted cranes, the stroke length affects both vertical and horizontal lifting capabilities. For example, a longer stroke length can enable the crane to lift and move objects over taller structures, while a shorter stroke might restrict the lifting height but provide faster response for more compact tasks. This makes stroke length a critical factor in determining the crane's versatility.

• Precision in Lifting: Longer stroke lengths allow for more precise control over the load's position, as the crane can adjust the lifting height over a greater distance. This is particularly useful in tasks that require fine control over the placement of the load, such as loading/unloading materials in tight spaces or lifting delicate equipment.

• Force Distribution: The longer the stroke, the more the cylinder is extended, and the more force is required to lift the load. In a side-mounted crane, the relationship between stroke length and force is vital for ensuring that the hydraulic system can provide enough power throughout the entire range of motion. If the stroke is too long for the cylinder’s capacity, the crane may struggle with stability and power during lifting.

3. Combined Impact on Lifting and Extension

When load capacity and stroke length are considered together, they define the overall performance range of a side-mounted crane:

• Balancing Load and Reach: Cranes used for lifting extremely heavy loads require cylinders with higher load capacities. However, increasing load capacity can often result in shorter stroke lengths due to space and structural limitations. On the other hand, cranes that need to extend over longer distances or lift to greater heights typically require cylinders with longer strokes, but this may limit the load they can handle.

• Optimizing Efficiency: To achieve an optimal balance, designers typically ensure that the hydraulic cylinder's load capacity and stroke length are well-matched to the crane's intended tasks. For example, for a crane that needs to lift both heavy loads and reach high distances, a combination of moderate load capacity and an extended stroke length would be ideal.

• Impact on Crane Design: The combination of load capacity and stroke length also affects the crane’s overall design. For example, a crane designed to handle heavy lifting may have a more robust, reinforced structure to support the additional force required by the hydraulic cylinder. Conversely, a crane with a longer stroke may have a more complex arm or boom design to accommodate the increased extension without compromising stability.
